Single Piston Rod Custom Made Hydraulic Cylinders For Hydraulic Pile Driver

Place of Origin Changzhou, China
Brand Name CZHydraulic
Model Number Hydraulic cylinder for hydraulic pile driver
Minimum Order Quantity 1 Piece/Pieces
Packaging Details Standard Export Package
Delivery Time 15~60 days depends on products type
Payment Terms L/C,T/T
Supply Ability 2400 Ton/Tons per Year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

welded cylinders hydraulic cylinders

,

piston hydraulic cylinder

Leave a Message
Product Description

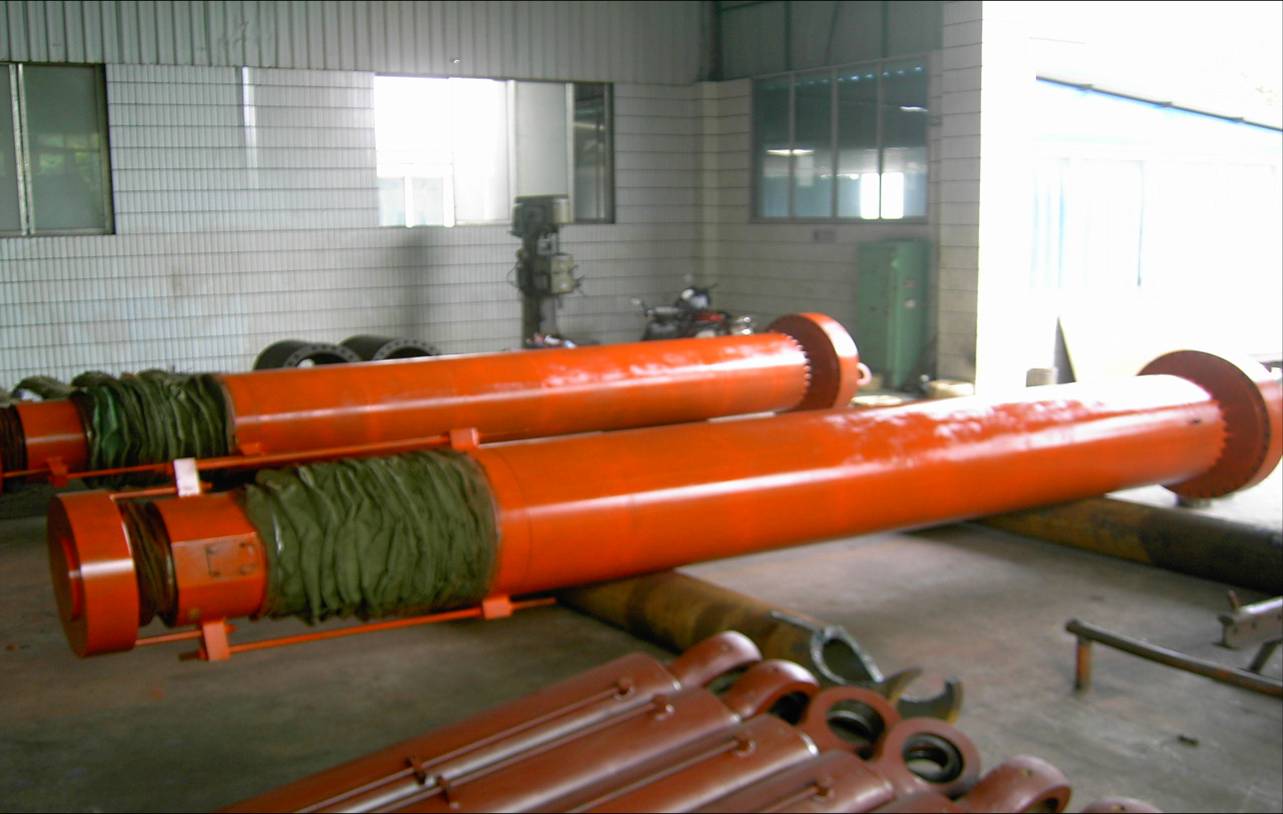

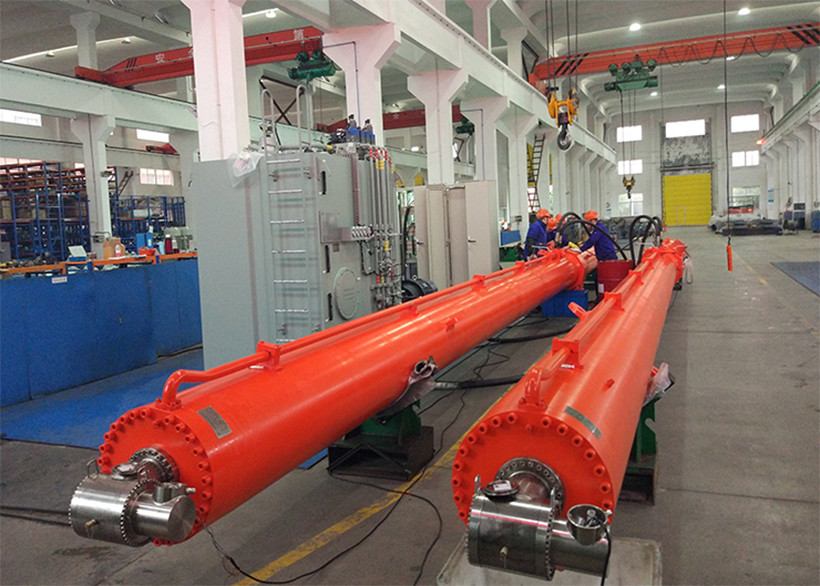

Single Piston Rod Custom Made Hydraulic Cylinders For Hydraulic Pile Driver



For water conservancy, mechanical/marine/mining equipment, oil industry, vehicles, energy and port facilities

Material :carbon, alloy, stainless steel

Certification:DNV, ABS, Lloyds, BV, SGS, GL, and CCS

AAA grade credit certificate issued by international credit assessment center

Key Specifications/Special FeaturesKey Specifications/Special Features

Application industry

water conservancy, mechanical/marine/mining equipment, oil industry, vehicles, energy and port facilities

Stroke length

50 to 16,000mm

Tube inner diameter

80 to 1,050mm

Piston rod diameter

45 to 600mm

plate

Ni/Cr/ceramic

Working pressure

70 to 700 bars

bearing

LONGXI(china)or SKF

Seal type

common stand or in accordance with client's requirement (we usually use Parker from USA or MERKER from Germany)

valves

parker/rexroth/atos/hydcom

Certification

DNV, ABS, Lloyds, BV, SGS, GL, and CCS

Material

carbon, alloy, stainless steel



Detail manufacturing drawings to be submitted to buyer for approval before manufacture is commenced

The single piston rod hydraulic cylinder for 25MPa nominal pressure , the pistons diameterφ50-φ500mm, travel to 6m .The hydraulic cylinder have crock bottom

half rings, crock bottom hinged rings, crock bottom circular flange, cylinder head round flange, intermediate trunnion, base and so on many kinds of

installation.Piston plated hard chromium or ceramic coating.Sealing form according to the different kinds hydraulic oil requirements and the friction factor of

different selection.Still, choose according to need position measurement, analog or digital output, trunnion or piston rod extend, etc.



We are Changzhou Hydraulic Complete set Equipment Co., LTd, leading manufacturer for hydraulic cylinder, hydraulic servomotor, dam hydraulic hoist.
Products:full series of hydraulic cylinder, heavy duty hydraulic cylinder, hoist cylinder, oil cylinder, super size hydraulic cylinders.

30 years in manufacturing hydraulic cylinders, application for  water conservancy projects, vehicles, machinery equipments, ship building, military industry and metallurgy equipments.

The only one super size cylinder manufactuer in China.

Full experience in design, produce, mounting, testing, operation and maintenance.

Cylinder max. Diameter 1200mm, stoke 16m, and annual productivity over 2000t.

Strong technological force and advanced technique and equipment, such as 3 sets of sunnen grinding machines.

2000m2 synthetic office building of computer control net work center

GB/T9001-2000, IDT ISO 9001:2000 quality management system.

AAA grade credit certificate issued by international credit assessment center
