Top denudate Radial Gate Long Hydraulic Cylinder 1200mm DNV Certification

China Top denudate Radial Gate Long Hydraulic Cylinder 1200mm DNV Certification supplier

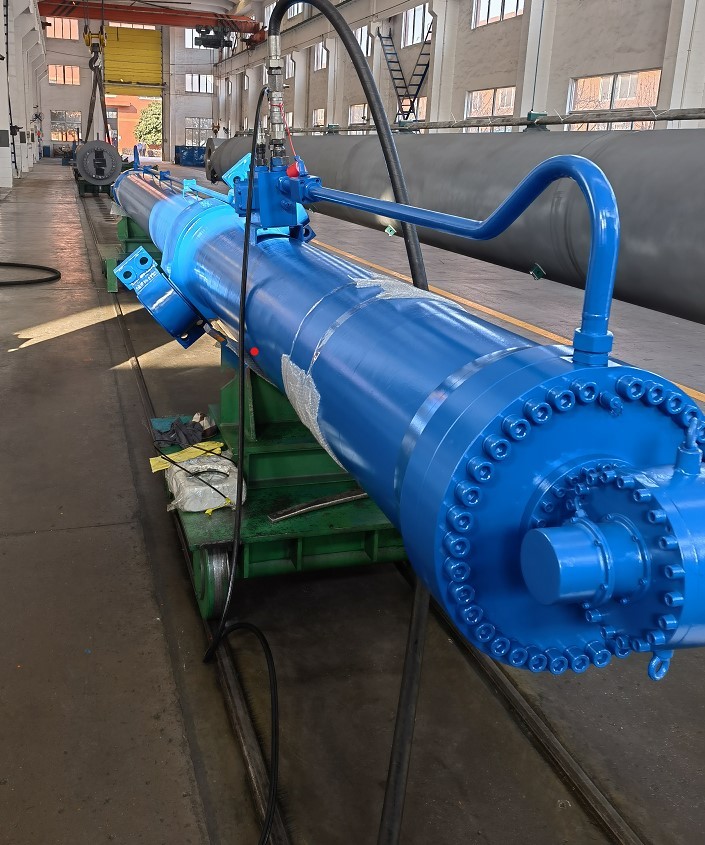

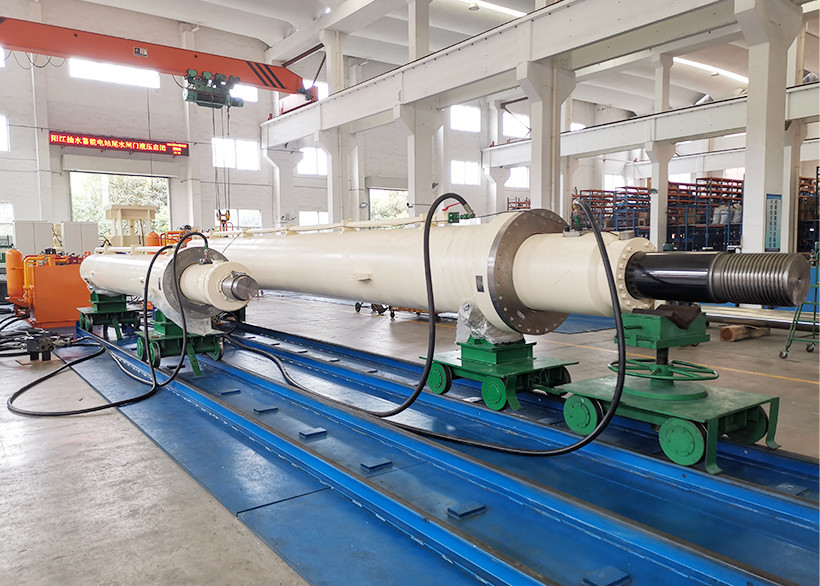

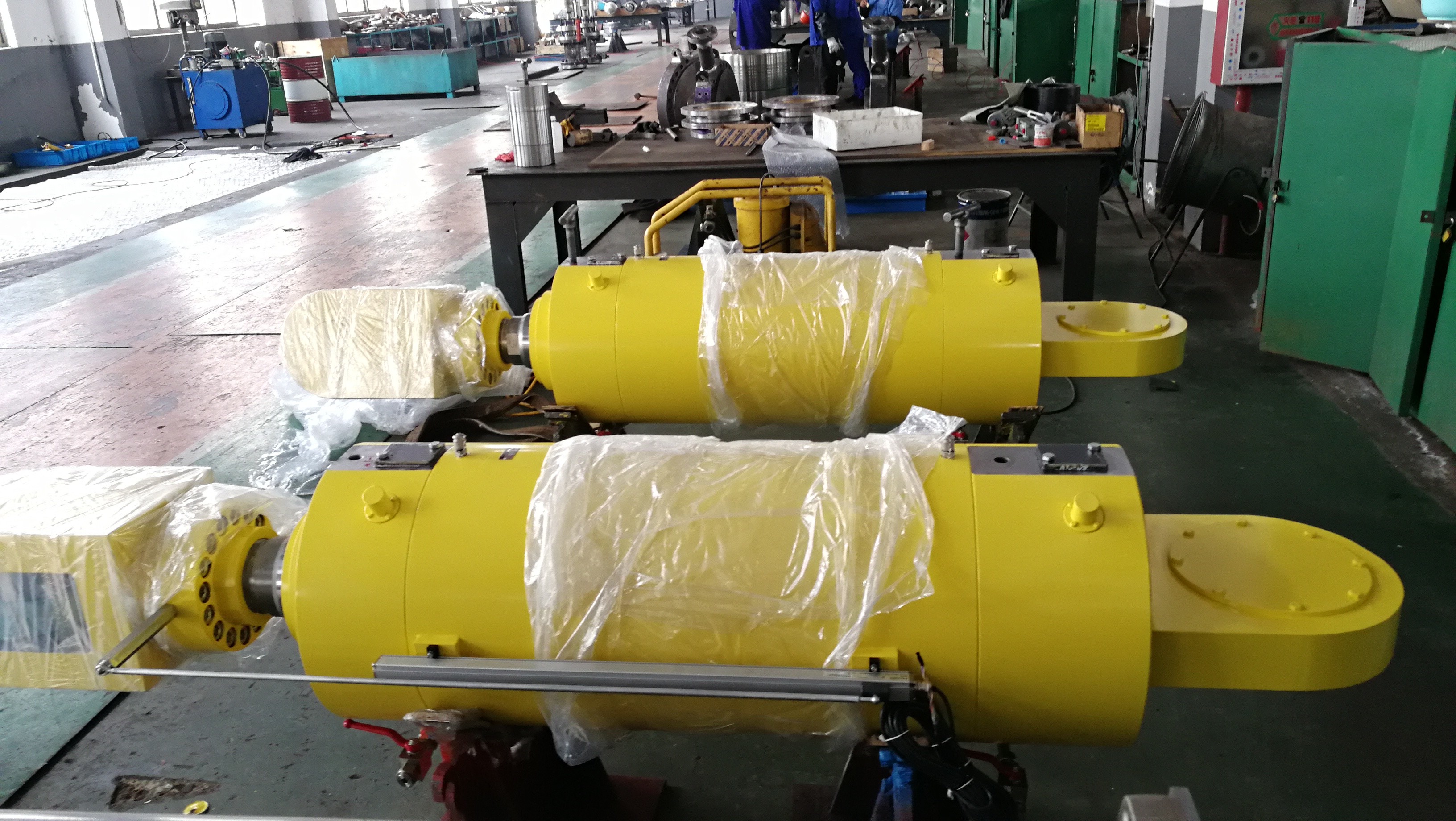

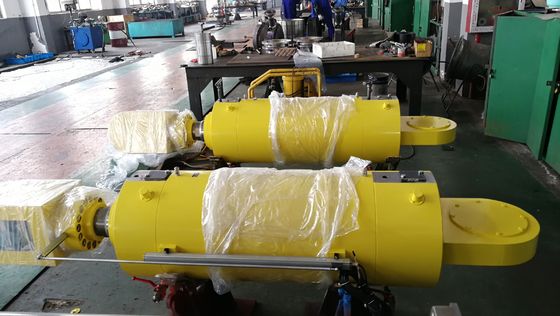

Large Image :  Top denudate Radial Gate Long Hydraulic Cylinder 1200mm DNV Certification

Product Details:

Place of Origin: Changzhou, China
Brand Name: CZHydraulic
Model Number: QHLY series

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Packaging Details: Standard Export Package
Delivery Time: 15~60 days depends on products type
Payment Terms: L/C,T/T
Supply Ability: 2400 Ton/Tons per Year
Port: SHANGHAI
Contact Now
Detailed Product Description
Structure: Piston Cylinder Power: Hydraulic
Body Material: Steel Stroke Length: 50 To 16,000mm
Applications: Industrial, Water Conservancy Project, Vehicle, Machinery Equipment Material: Carbon, Alloy, Stainless Steel

Top denudate Radial Gate Long Hydraulic Cylinder 1200mm DNV Certification





QHLY series hydraulic hoist, Top-denudate radial gate hydraulic hoist





Description:



Key Specifications/Special FeaturesKey Specifications/Special Features



Application industry

water conservancy, mechanical/marine/mining equipment, oil industry, vehicles, energy and port facilities

Stroke length

50 to 16,000mm

Tube inner diameter

80 to 1,050mm

Piston rod diameter

45 to 600mm

plate

Ni/Cr/ceramic

Working pressure

70 to 700 bars

bearing

LONGXI(china)or SKF

Seal type

common stand or in accordance with client's requirement (we usually use Parker from USA or MERKER from Germany)

valves

parker/rexroth/atos/hydcom

Certification

DNV, ABS, Lloyds, BV, SGS, GL, and CCS

Material

carbon, alloy, stainless steel



Detail manufacturing drawings to be submitted to buyer for approval before manufacture is commenced





Applications:



QHLY series hydraulic hoist is applicable to the opening and closing to all kinds of Top-denudate radial gate which used in  hydropower project , it is also can be used for the opening and closing on the Low-head-type arc-hole gate which is closed by weight. The operating temperature is -25 ℃-50 ℃. QHLY has many characteristics: the host compact bodies, high hydraulic transmission efficiency, smooth and reliable operation, easy in hydraulic building to decorate, technical and economic advanced etc.





Competitive Advantage:



QHLY series hydraulic hoist; Top-denudate radial gate hydraulic hoist



We are Changzhou Hydraulic Complete Equipment Co., LTd, the leading manufacturer for hydraulic cylinder, hydraulic servomotor, dam hydraulic hoist etc.
Products:full series of hydraulic cylinder, heavy duty hydraulic cylinder, hoist cylinder, oil cylinder, super size hydraulic cylinders.

30 years in manufacturing hydraulic cylinders, application for  water conservancy projects, vehicles, machinery equipments, ship building, military industry and metallurgy equipments.

The only one super size cylinder manufactuer in China.

Full experience in design, produce, mounting, testing, operation and maintenance.

Cylinder max. Diameter 1200mm, stoke 16m, and annual productivity over 2000t.

Strong technological force and advanced technique and equipment, such as 3 sets of sunnen grinding machines.

2000m2 synthetic office building of computer control net work center

GB/T9001-2000, IDT ISO 9001:2000 quality management system.

AAA grade credit certificate issued by international credit assessment center
30 years in manufacturing hydraulic cylinders, application for  water conservancy projects, vehicles, machinery equipments, ship building, military industry and metallurgy equipments.

The only one super size cylinder manufactuer in China.

Full experience in design, produce, mounting, testing, operation and maintenance.

Cylinder max. Diameter 1200mm, stoke 16m, and annual productivity over 2000t.

Strong technological force and advanced technique and equipment, such as 3 sets of sunnen grinding machines.

2000m2 synthetic office building of computer control net work center

GB/T9001-2000, IDT ISO 9001:2000 quality management system.

AAA grade credit certificate issued by international credit assessment center.
