Tractor Loader Large Bore Hydraulic Cylinders Hydraulic Ram Cylinder

Place of Origin Changzhou, China
Brand Name CZHydraulic
Model Number QPKY-Plane
Minimum Order Quantity 1 Piece/Pieces
Packaging Details Standard Export Package
Delivery Time 15~60 days depends on products type
Payment Terms L/C,T/T
Supply Ability 2400 Ton/Tons per Year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Structure Piston Cylinder Power Hydraulic
Body Material Steel Brand Name CZHydraulic
Applications Industrial, Water Conservancy Project, Vehicle, Machinery Equipment Stroke 16,000mm
High Light

push pull hydraulic cylinder

,

ram hydraulic cylinders

,

Tractor Loader Large Bore Hydraulic Cylinders

Leave a Message
Product Description

Tractor Loader Large Bore Hydraulic Cylinders Hydraulic Ram Cylinder





Hydraulic hoist



Plane rapid gate hydraulic hoist





Cylinder and cylinder of the advantages and disadvantages:



1. As the pneumatic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
3. The air viscosity is small, the resistance to less than the hydraulic oil;
4. But the air is much larger than the compression rate of hydraulic oil, so it's working smoothly and to respond to far backward in this regard.
Hydraulic cylinder hydraulic system is the most important components of implementation, it can convert mechanical energy of hydraulic and matched with a variety of transmission to complete all of the mechanical movement. Hydraulic cylinder has a simple structure, the output force, stable and reliable performance and easy maintenance, wide range of applications and so on.





Key Specifications/Special FeaturesKey Specifications/Special Features



Application industry water conservancy, mechanical/marine/mining equipment, oil industry, vehicles, energy and port facilities
Stroke length 50 to 16,000mm
Tube inner diameter 80 to 1,050mm
Piston rod diameter 45 to 600mm
plate Ni/Cr/ceramic
Working pressure 70 to 700 bars
bearing LONGXI(china)or SKF
Seal type common stand or in accordance with client's requirement (we usually use Parker from USA or MERKER from Germany)
valves parker/rexroth/atos/hydcom
Certification DNV, ABS, Lloyds, BV, SGS, GL, and CCS
Material  carbon, alloy, stainless steel
  Detail manufacturing drawings to be submitted to buyer for approval before manufacture is commenced


QPKY series hydraulic hoist mainly apply to opening and closing of the common plane rapid gate in hydropower project, the basic parameters and the shape of installation size is exactly the same as QPKY Ⅱseries, except the hydraulic control valve using speed control one.



QPKY Series hydraulic hoist, Plane rapid gate hydraulic hoist



Hydraulic cylinder is the hydraulic energy into mechanical energy, reciprocating motion to do (or swing movement) of the hydraulic actuators. It is simple, reliable. Use it to achieve reciprocating movement can be removed from deceleration devices, and no transmission gap, smooth motion, so in a variety of machines are widely used in hydraulic systems. Hydraulic cylinder output force and the effective area of the piston is proportional to the pressure difference on both sides; hydraulic cylinder is basically a cylinder and cylinder head, piston and piston rod, seals, cushioning device and the exhaust composition.
Buffer device and the exhaust depending on the specific application of the occasion, other devices are indispensable.

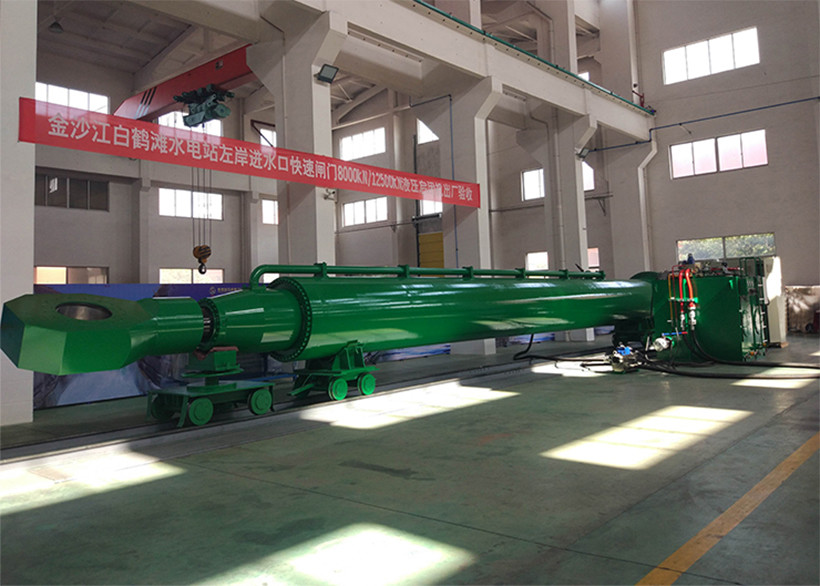

QPKYPlane rapid gate Hydraulic Hoist Cylinder
