Thermal Spray High Temp Ceramic Coating Abrasion Resistant ASTM-C633

China Thermal Spray High Temp Ceramic Coating Abrasion Resistant ASTM-C633 supplier

Large Image :  Thermal Spray High Temp Ceramic Coating Abrasion Resistant ASTM-C633

Product Details:

Place of Origin: Changzhou, China
Brand Name: CZHydraulic

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Packaging Details: Standard Export Package
Delivery Time: 15~60 days depends on products type
Payment Terms: L/C,T/T
Supply Ability: 2400 Ton/Tons per Year
Port: SHANGHAI
Contact Now
Detailed Product Description
Structure: Piston Cylinder Power: Hydraulic
Body Material: Steel Product Name: Thermal Spray Coatings
Typical Coating Composition: Inc625-Cr2O3TiO2 Bond Strength: > 40MPa
Macro Hardness: 65 HRC

Thermal Spray High Temp Ceramic Coating Abrasion Resistant ASTM-C633


Description:

Anti-corrosion and salt spray test > 4000hrs
Macro hardness 65 HRC
Maximum temperature 540˚C
Bond strength  > 40MPa
Standard: ASTM-C633 ,NEN-EU 5,NEN-ISO 4287,NEN-ISO 4287,ASTM D2794-93
NEN-ISO 4287,DIN50021-155,TNOCA02.8043



HYDROX AP20 Coating Technical Specifications



List of items

HYDROX AP20

    Standard

Typical coating composition

Inc625-Cr2O3TiO2



Coating thickness

Bottom ( Inc625) ≥150um





Surface layer ( Cr2O3TiO2) ≥200um



Bond strength

       > 40MPa

ASTM-C633

Maximum temperature

540˚C



Porosity

< 2%



Macro hardness

65 HRC



Micro hardness

> 1000HV200

NEN-EU 5

Surface Finish (Ra)

0.15um-0.4um

NEN-ISO 4287

Surface Finish (Rz)

< 4.5um

NEN-ISO 4287

Shock Value

> 2J

ASTM D2794-93

RPK Material contact area

> 80%,Depth 1,0um

NEN-ISO 4287

Anti-corrosion and salt spray test

> 4000hrs

DIN50021-155

ECP(Drying)

< -350mV



ECP(Semi-dry)

< -350mV

TNOCA02.8043

ECP(Wet)

< -350mV




To apple ceramic coating on the equipment surface  can have many benefits . Such as high hardness, high temperature resistant, corrosion resistance, salt fog resistance. Effect is much better than common electroplating. It works well in ocean industry, food machinery, water conservancy and hydropower, aerospace and other industries.

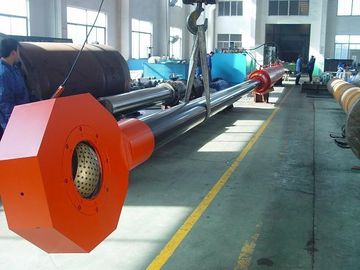

Thermal Ceramic coated piston rod Spray Coatings
