Heavy Duty Welded Industrial Hydraulic Cylinders For Sea Drilling Platform

Place of Origin Changzhou, China
Brand Name CZHydraulic
Model Number Hydraulic Hoist for Sea Drilling Platform
Minimum Order Quantity 1 Piece/Pieces
Packaging Details Standard Export Package
Delivery Time 15~60 days depends on products type
Payment Terms L/C,T/T
Supply Ability 2400 Ton/Tons per Year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

welded cylinders hydraulic cylinders

,

piston hydraulic cylinder

Leave a Message
Product Description

Heavy Duty Welded Industrial Hydraulic Cylinders For Sea Drilling Platform



Material :carbon, alloy, stainless steel

Certification:DNV, ABS, Lloyds, BV, SGS, GL, and CCS

AAA grade credit certificate issued by international credit assessment center

Key Specifications/Special FeaturesKey Specifications/Special Features

Application industry

water conservancy, mechanical/marine/mining equipment, oil industry, vehicles, energy and port facilities

Stroke length

50 to 16,000mm

Tube inner diameter

80 to 1,050mm

Piston rod diameter

45 to 600mm

plate

Ni/Cr/ceramic

Working pressure

70 to 700 bars

bearing

LONGXI(china)or SKF

Seal type

common stand or in accordance with client's requirement (we usually use Parker from USA or MERKER from Germany)

valves

parker/rexroth/atos/hydcom

Certification

DNV, ABS, Lloyds, BV, SGS, GL, and CCS

Material

carbon, alloy, stainless steel



Detail manufacturing drawings to be submitted to buyer for approval before manufacture is commenced

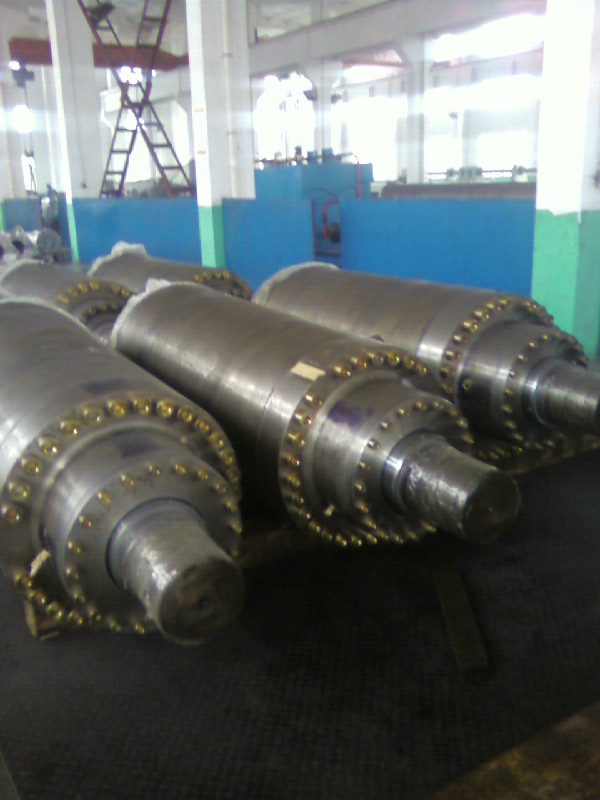

Industrial Hydraulic Cylinders for Sea Drilling Platform, to lift and lock sea drilling platform

It is standard pruoduct the standard is JB/ZQ4181-1997.This seriesbelongs to heavy-duty hydraulic cylinder. Which is specitically designed for metallurgy & heavy-dutymachinery.Because of their functional reliability, good impact and pollution resistance , they  apply to high-temperature , high-pressure and rugged environment.Nowadays.They widely used in metallurgy , roll, ship, aerospace, transport and power equipment.

We are Changzhou Hydraulic Complete set Equipment Co., LTd, leading manufacturer for hydraulic cylinder, hydraulic servomotor, dam hydraulic hoist.
Products:full series of hydraulic cylinder, heavy duty hydraulic cylinder, hoist cylinder, oil cylinder, super size hydraulic cylinders.

30 years in manufacturing hydraulic cylinders, application for  water conservancy projects, vehicles, machinery equipments, ship building, military industry and metallurgy equipments.

The only one super size cylinder manufactuer in China.

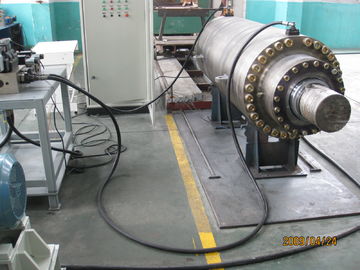

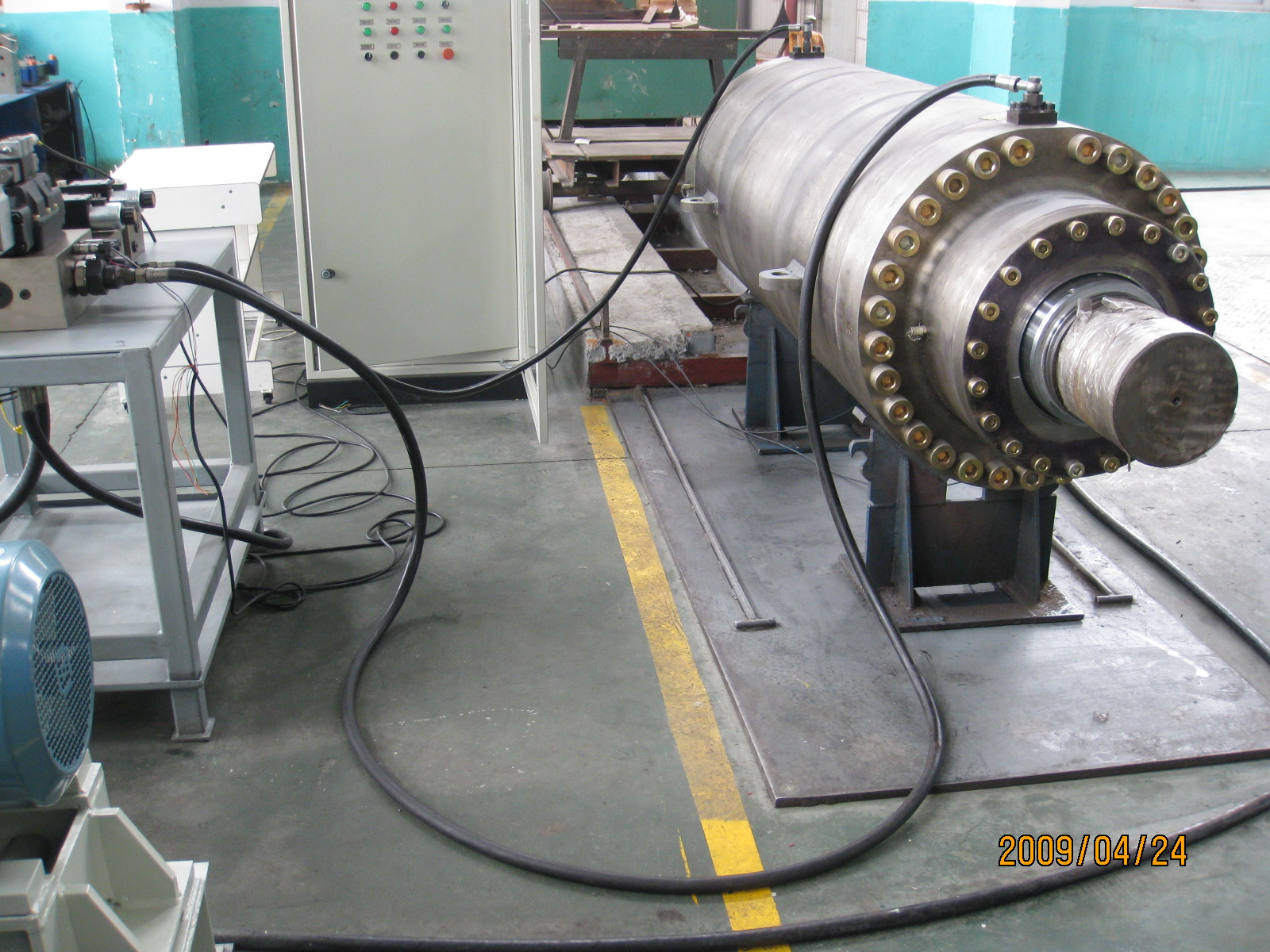

Full experience in design, produce, mounting, testing, operation and maintenance.

Cylinder max. Diameter 1200mm, stoke 16m, and annual productivity over 2000t.

Strong technological force and advanced technique and equipment, such as 3 sets of sunnen grinding machines.

2000m2 synthetic office building of computer control net work center

GB/T9001-2000, IDT ISO 9001:2000 quality management system.

AAA grade credit certificate issued by international credit assessment center
