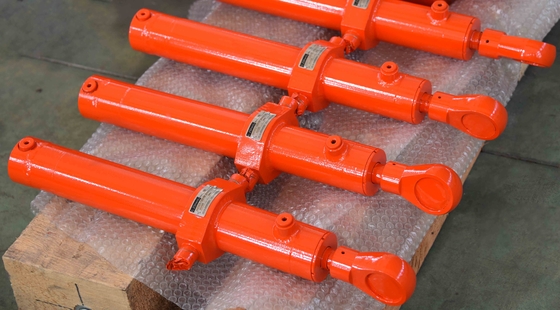

center trunnion type Hydraulic Cylinders customized hydraulic cylinders

Place of Origin Changzhou, China
Brand Name CZHydraulic
Model Number Hydraulic cylinder for container transport
Minimum Order Quantity 1 Piece/Pieces
Packaging Details Standard Export Package
Delivery Time 15~60 days depends on products type
Payment Terms L/C,T/T
Supply Ability 2400 Ton/Tons per Year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

welded cylinders hydraulic cylinders

,

piston hydraulic cylinder

,

Multi Function Welded Hydraulic Cylinders

Leave a Message
Product Description





Material :carbon, alloy, stainless steel

Certification:DNV, ABS, Lloyds, BV, SGS, GL, and CCS

AAA grade credit certificate issued by international credit assessment center

Key Specifications/Special FeaturesKey Specifications/Special Features

Application industry

water conservancy, mechanical/marine/mining equipment, oil industry, vehicles, energy and port facilities

Stroke length

50 to 16,000mm

Tube inner diameter

80 to 1,050mm

Piston rod diameter

45 to 600mm

plate

Ni/Cr/ceramic

Working pressure

70 to 700 bars

bearing

LONGXI(china)or SKF

Seal type

common stand or in accordance with client's requirement (we usually use Parker from USA or MERKER from Germany)

valves

parker/rexroth/atos/hydcom

Certification

DNV, ABS, Lloyds, BV, SGS, GL, and CCS

Material

carbon, alloy, stainless steel



Detail manufacturing drawings to be submitted to buyer for approval before manufacture is commenced


It is standard pruoduct the standard is JB/ZQ4181-1997.This seriesbelongs to heavy-duty hydraulic cylinder. Which is specitically designed for metallurgy & heavy-duty machinery. Because of their functional reliability, good impact and pollution resistance , they  apply to high-temperature , high-pressure and rugged environment.Nowadays.They widely used in metallurgy , roll, ship, aerospace, transport and power equipment.



Cylinder and cylinder of the advantages and disadvantages:
1. As the pneumatic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
3. The air viscosity is small, the resistance to less than the hydraulic oil;
4. But the air is much larger than the compression rate of hydraulic oil, so it's working smoothly and to respond to far backward in this regard.
Hydraulic cylinder hydraulic system is the most important components of implementation, it can convert mechanical energy of hydraulic and matched with a variety of transmission to complete all of the mechanical movement. Hydraulic cylinder has a simple structure, the output force, stable and reliable performance and easy maintenance, wide range of applications and so on.
