High Pressure Radial Gate Large Bore Hydraulic Cylinders Double Acting QHLY

  • High Pressure Radial Gate Large Bore Hydraulic Cylinders Double Acting QHLY
  • High Pressure Radial Gate Large Bore Hydraulic Cylinders Double Acting QHLY
  • High Pressure Radial Gate Large Bore Hydraulic Cylinders Double Acting QHLY
  • High Pressure Radial Gate Large Bore Hydraulic Cylinders Double Acting QHLY
Place of Origin Changzhou, China
Brand Name CZHydraulic
Model Number QHLY
Minimum Order Quantity 1 Piece/Pieces
Packaging Details Standard Export Package
Delivery Time 15~60 days depends on products type
Payment Terms L/C,T/T
Supply Ability 2400 Ton/Tons per Year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

big hydraulic cylinder

,

biggest hydraulic cylinder

,

Radial Gate Large Bore Hydraulic Cylinders
Leave a Message
Product Description

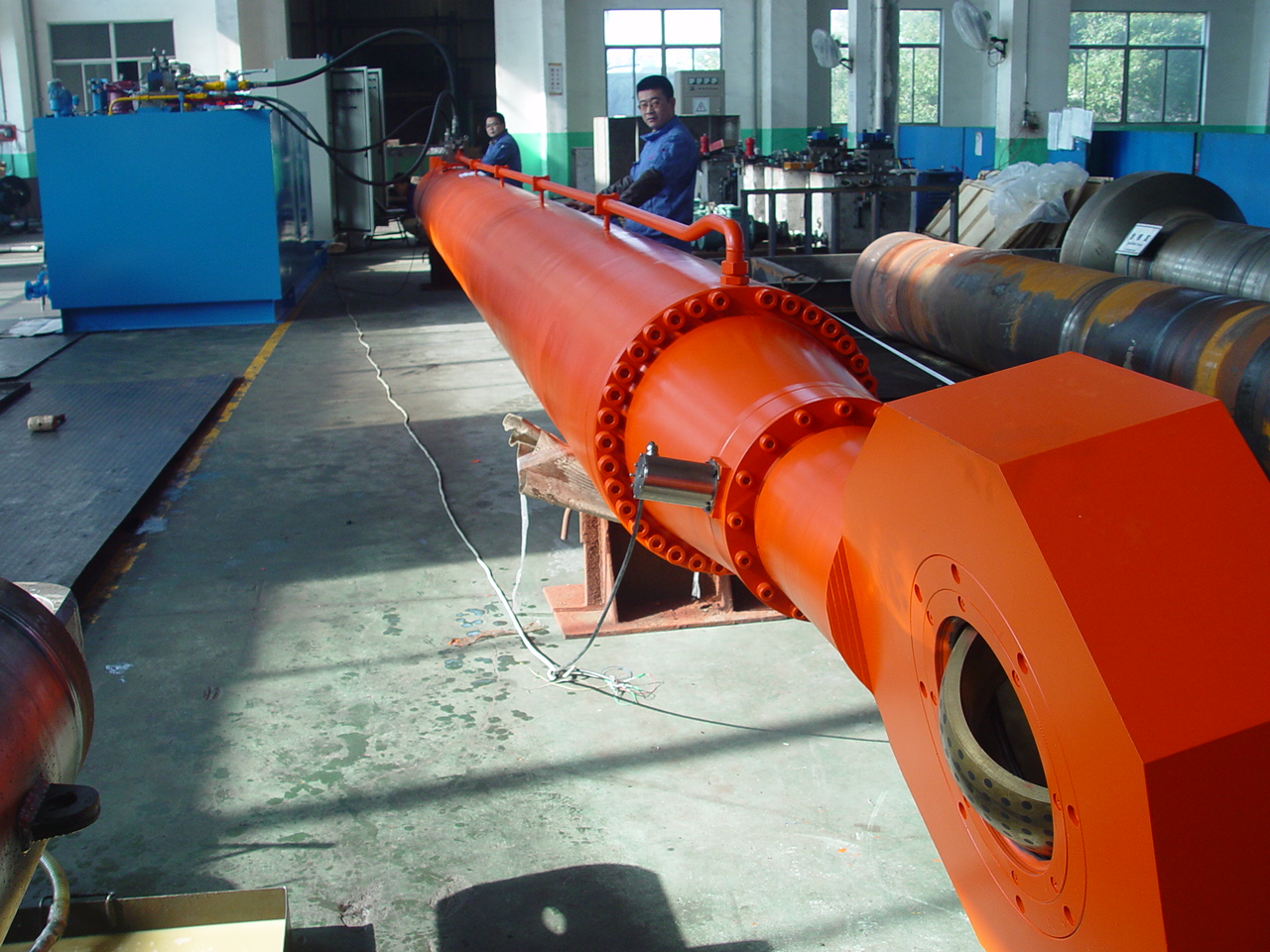

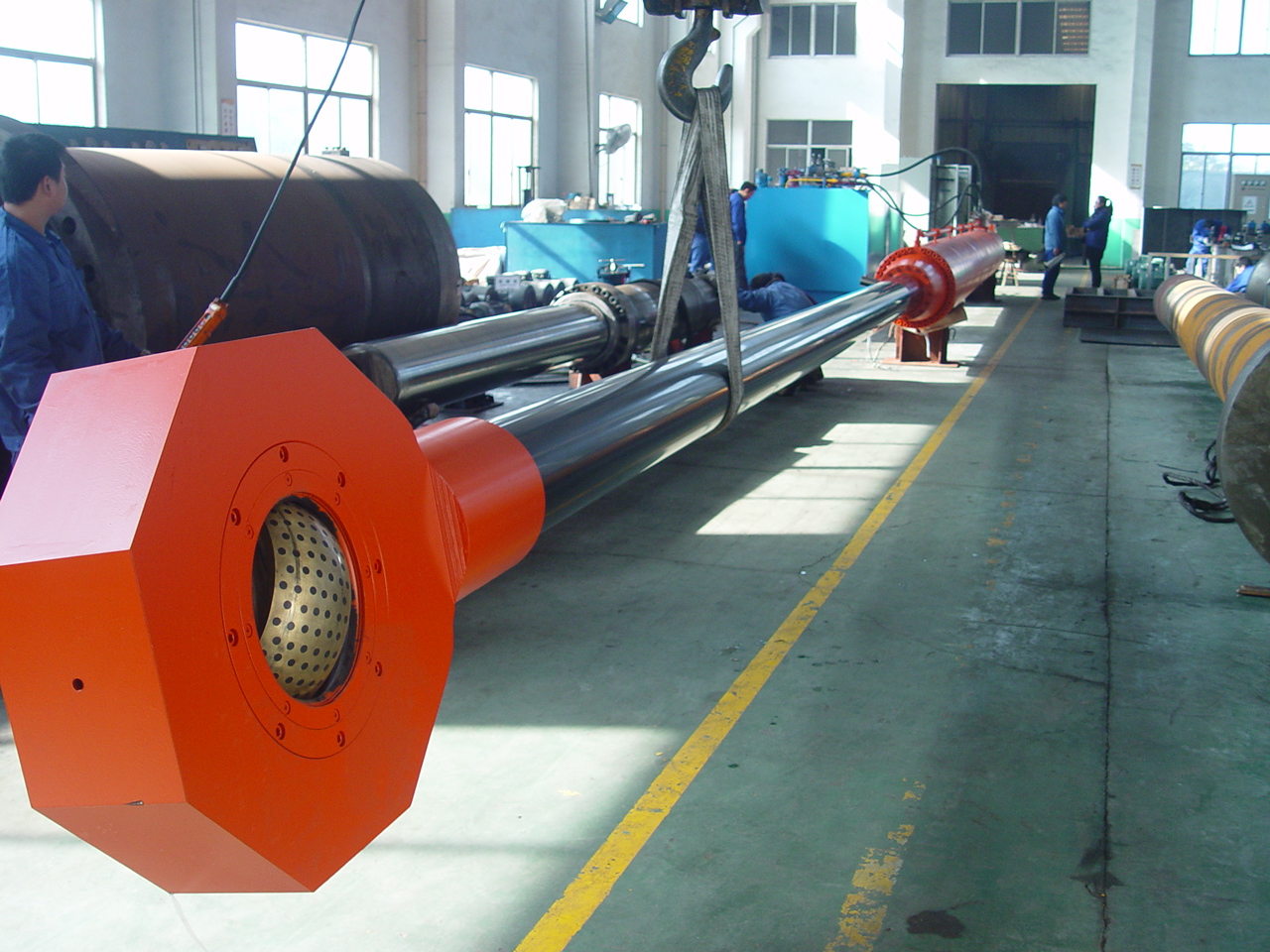

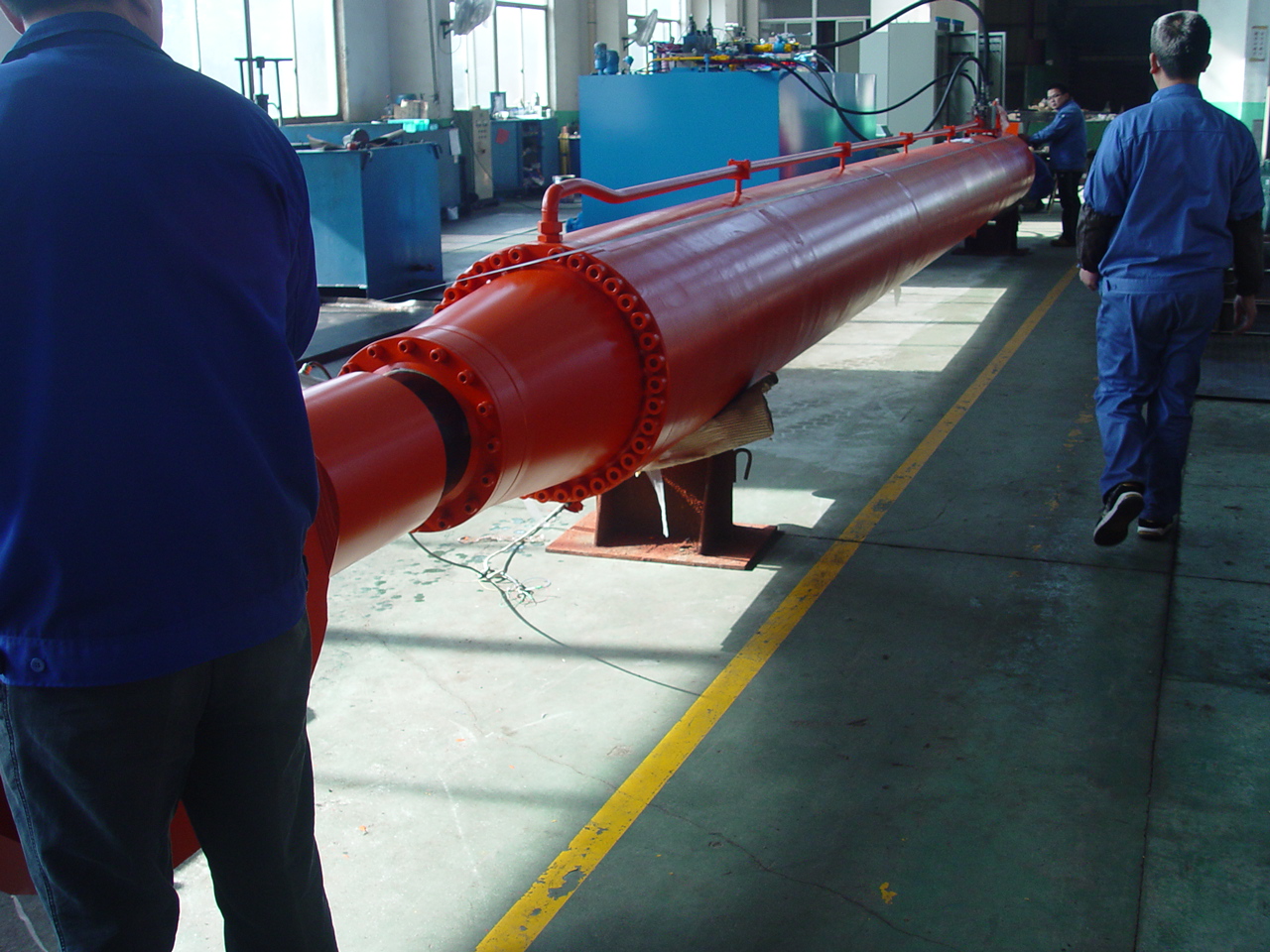

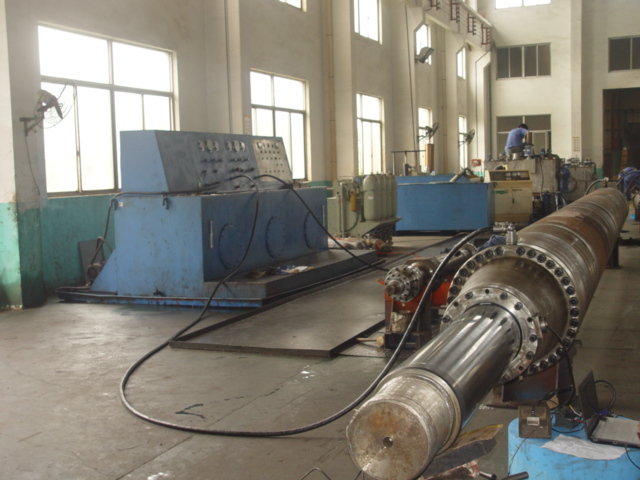

High Pressure Radial Gate Large Bore Hydraulic Cylinders Double Acting QHLY





Certification : DNV, ABS, Lloyds, BV, SGS, GL, and CCS

QHLY series hydraulic hoist

Top-denudate radial gate hydraulic hoist

Key Specifications/Special FeaturesKey Specifications/Special Features

Application industry

water conservancy, mechanical/marine/mining equipment, oil industry, vehicles, energy and port facilities

Stroke length

50 to 16,000mm

Tube inner diameter

80 to 1,050mm

Piston rod diameter

45 to 600mm

plate

Ni/Cr/ceramic

Working pressure

70 to 700 bars

bearing

LONGXI(china)or SKF

Seal type

common stand or in accordance with client's requirement (we usually use Parker from USA or MERKER from Germany)

valves

parker/rexroth/atos/hydcom

Certification

DNV, ABS, Lloyds, BV, SGS, GL, and CCS

Material

carbon, alloy, stainless steel



Detail manufacturing drawings to be submitted to buyer for approval before manufacture is commenced





QHLY series hydraulic hoiste is applicable to the opening and closing to all kinds of Top-denudate radial gate which used in  hydropower project , it is also can be used for the opening and closing on the Low-head-type arc-hole gate which is closed by weight.



The operating temperature is -25 ℃-50 ℃. QHLY has many characteristics: the host compact bodies, high hydraulic transmission efficiency, smooth and reliable operation, easy in hydraulic building to decorate, technical and economic advanced etc.



QHLY series hydraulic hoist, Top-denudate radial gate hydraulic hoist
