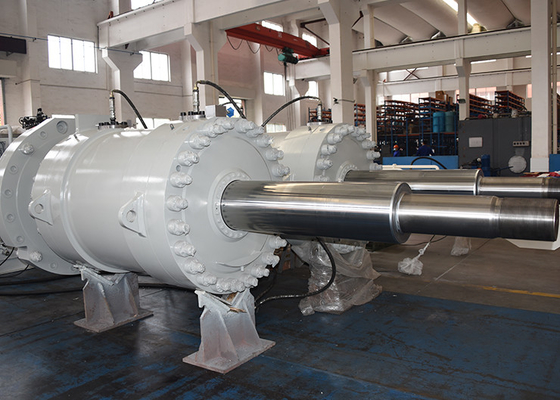

Heavy Duty Large Bore Hydraulic Dump Cylinder For Transport / Power Equipment

Heavy Duty Large Bore Hydraulic Dump Cylinder For Transport / Power Equipment
Heavy Duty Large Bore Hydraulic Dump Cylinder For Transport / Power Equipment Heavy Duty Large Bore Hydraulic Dump Cylinder For Transport / Power Equipment

Large Image :  Heavy Duty Large Bore Hydraulic Dump Cylinder For Transport / Power Equipment Get Best Price

Product Details:
Place of Origin: Changzhou, China
Brand Name: CZHydraulic
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Packaging Details: Standard Export Package
Delivery Time: 15~60 days depends on products type
Payment Terms: L/C,T/T
Supply Ability: 2400 Ton/Tons per Year
Port: SHANGHAI
Detailed Product Description
Structure: Piston Cylinder Power: Hydraulic
Body Material: Steel Material: Carbon, Alloy, Stainless Steel
Installed Capacity: 20MW Installed Capacity Productivity: Over 2000t Annual
High Light:

large hydraulic cylinder

,

big hydraulic cylinder

Heavy Duty Large Bore Hydraulic Dump Cylinder For Transport / Power Equipment





Apply to high-temperature , high-pressure and rugged environment

carbon, alloy, stainless steel Material

Key Specifications/Special FeaturesKey Specifications/Special Features

Application industry

water conservancy, mechanical/marine/mining equipment, oil industry, vehicles, energy and port facilities

Stroke length

50 to 16,000mm

Tube inner diameter

80 to 1,050mm

Piston rod diameter

45 to 600mm

plate

Ni/Cr/ceramic

Working pressure

70 to 700 bars

bearing

LONGXI(china)or SKF

Seal type

common stand or in accordance with client's requirement (we usually use Parker from USA or MERKER from Germany)

valves

parker/rexroth/atos/hydcom

Certification

DNV, ABS, Lloyds, BV, SGS, GL, and CCS

Material

carbon, alloy, stainless steel



Detail manufacturing drawings to be submitted to buyer for approval before manufacture is commenced





It is standard pruoduct the standard is JB/ZQ4181-1997.This seriesbelongs to heavy-duty hydraulic cylinder. Which is specitically designed for metallurgy & heavy-

dutymachinery.Because of their functional reliability, good impact and pollution resistance , they  apply to high-temperature , high-pressure and rugged

environment.Nowadays.They widely used in metallurgy , roll, ship, aerospace, transport and power equipment.

Cylinder and cylinder of the advantages and disadvantages:
1. As the pneumatic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
3. The air viscosity is small, the resistance to less than the hydraulic oil;
4. But the air is much larger than the compression rate of hydraulic oil, so it's working smoothly and to respond to far backward in this regard.
Hydraulic cylinder hydraulic system is the most important components of implementation, it can convert mechanical energy of hydraulic and matched with a variety of transmission to complete all of the mechanical movement. Hydraulic cylinder has a simple structure, the output force, stable and reliable performance and easy maintenance, wide range of applications and so on.



Parts

 Heavy Duty Large Bore Hydraulic Dump Cylinder For Transport / Power Equipment 0   Heavy Duty Large Bore Hydraulic Dump Cylinder For Transport / Power Equipment 1

Heavy Duty Large Bore Hydraulic Dump Cylinder For Transport / Power Equipment 2    Heavy Duty Large Bore Hydraulic Dump Cylinder For Transport / Power Equipment 3

Heavy Duty Large Bore Hydraulic Dump Cylinder For Transport / Power Equipment 4    Heavy Duty Large Bore Hydraulic Dump Cylinder For Transport / Power Equipment 5

Production assembly

Heavy Duty Large Bore Hydraulic Dump Cylinder For Transport / Power Equipment 6    Heavy Duty Large Bore Hydraulic Dump Cylinder For Transport / Power Equipment 7

Heavy Duty Large Bore Hydraulic Dump Cylinder For Transport / Power Equipment 8    Heavy Duty Large Bore Hydraulic Dump Cylinder For Transport / Power Equipment 9

TEST

Heavy Duty Large Bore Hydraulic Dump Cylinder For Transport / Power Equipment 10   Heavy Duty Large Bore Hydraulic Dump Cylinder For Transport / Power Equipment 11
