Stainless Steel Hydraulic Cylinder Unit Hydraulic station hydraulic system

Stainless Steel Hydraulic Cylinder Unit Hydraulic station hydraulic system

Key Specifications/Special FeaturesKey Specifications/Special Features

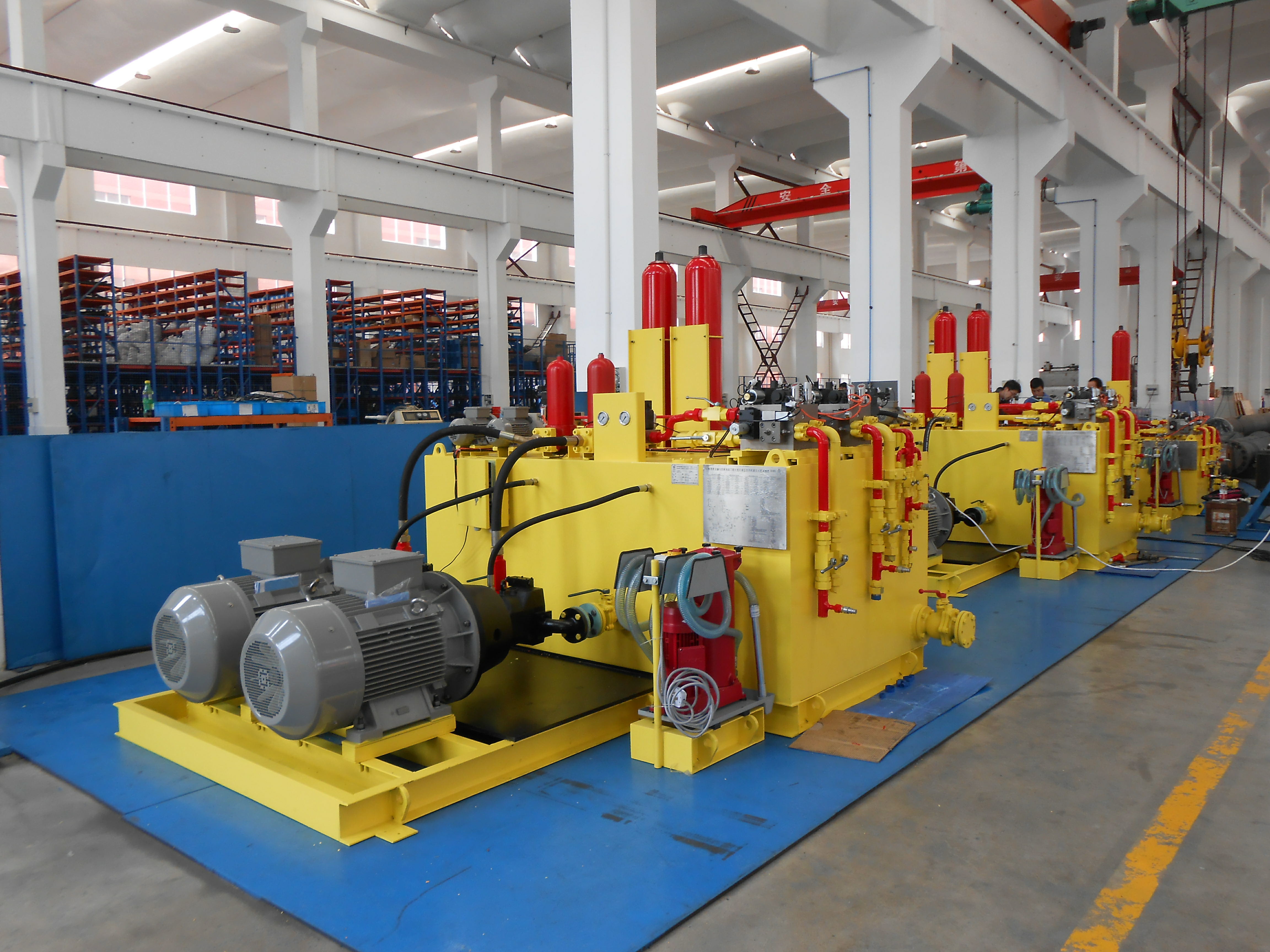

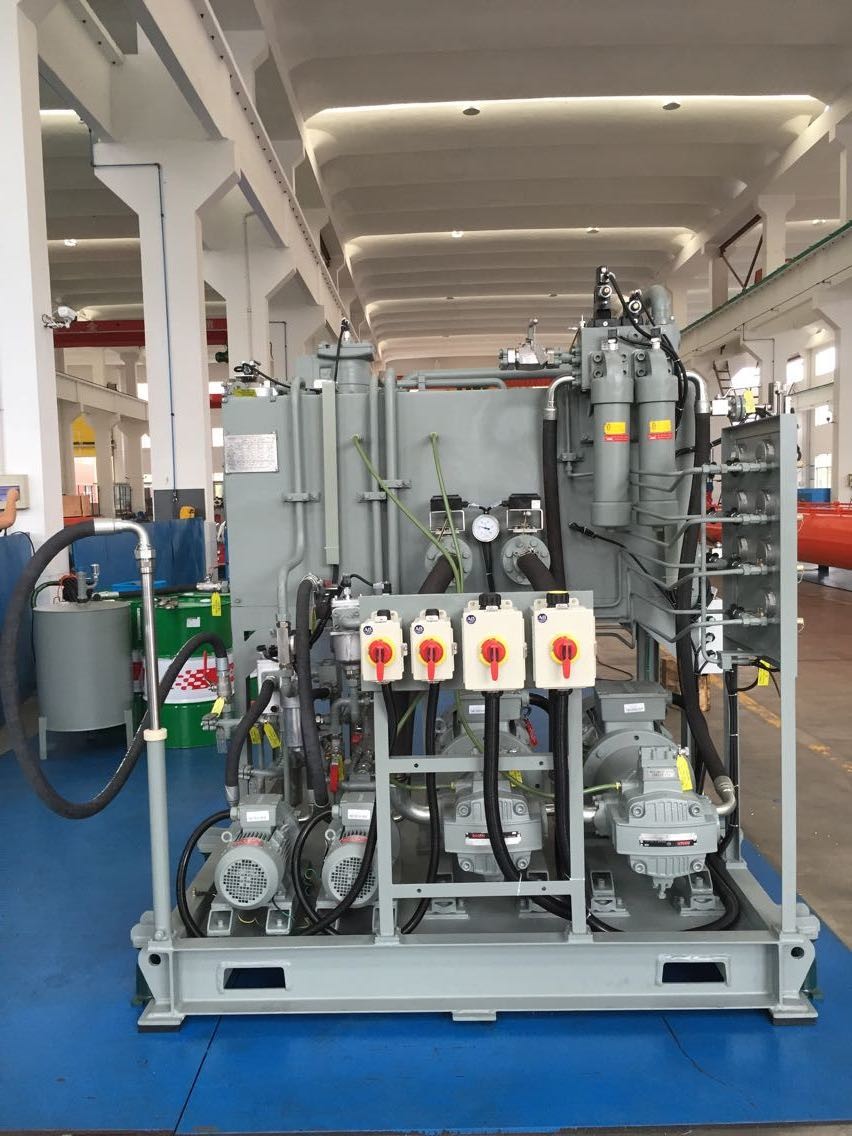

Hydraulic station also known as the stations are independent hydraulic device.

It request by the oil gradually .And controlling the hydraulic oil flow direction, pressure and flow rate, applied to the mainframe and hydraulic devices separability of hydraulic manchinery.

Users will be provide after the purchase hydraulic station and host of implementing agencies (motor oil or fuel tanks)connected with tubing, Hydraulic machinery can be realized from these movements and the work cycle.

Hydraulic station is installed, Manifold or valve combination.tanks, a combination of electrical boxes.

Functional components:

Pump device – is equipped with motos and pumps, hydraulic station is the source of power.to mechanical energy into hydraulic oil pressure can be.

Manifold – from hydraulic valve body and channel assembled.Right direction for implementation of hydraulic oil, pressure and flow control.

Valve portfolio – plate valve is installed in up board after board connects with the same functional IC.

Tank – plate welding semi-closed containers, also loaded with oil filtering network, air filters, used oil, oil filter and cooling.

Electrical boxes – at the two patterns.A set of external fuse terminal plates;distribution of a full range of electrical control.

Hydraulic Staton principle:motor drive pump rotation, which pump oil absorption from the oil tank.to mechanical energy into hydraulic pressure to the station, hydraulic oil through Manifold(or valve combinations)realized the direction, pressure, After adjusting flow pipe and external to the cylinder hydraulic machinery or motor oil, so as to control the direction of the motive fluid transformation force the size and speed the pace of promoting the various acting hydraulic machinery.
