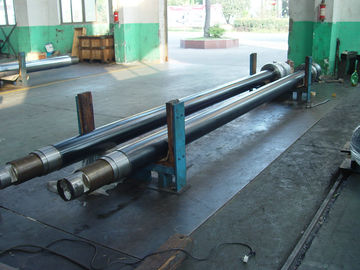

Piston Rod Ceramic Thermal Coating 0.15um - 0.4um Surface Finish excellent wear and corrosion resistance
| Place of Origin | Changzhou, China |
|---|---|
| Brand Name | CZHydraulic |
| Minimum Order Quantity | 1 Piece/Pieces |
| Packaging Details | Standard Export Package |
| Delivery Time | 15~60 days depends on products type |
| Payment Terms | L/C,T/T |
| Supply Ability | 2400 Ton/Tons per Year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Structure | Piston Cylinder | Power | Hydraulic |
|---|---|---|---|
| Body Material | Steel | Product Name | Thermal Spray Coatings |
| Bond Strength | > 40MPa | Typical Coating Composition | Inc625-Cr2O3TiO2 |
| Macro Hardness | 65 HRC | ||
| High Light | metal spray coatings,thermal spray powder coating,Ceramic Thermal Coating 0.15um |
||
Product Description
Piston Rod Ceramic Thermal Coating 0.15um - 0.4um Surface Finish
Description:
Anti-corrosion and salt spray test > 4000hrs
Macro hardness 65 HRC
Maximum temperature 540˚C
Bond strength > 40MPa
Standard: ASTM-C633 ,NEN-EU 5,NEN-ISO 4287,NEN-ISO 4287,ASTM D2794-93
NEN-ISO 4287,DIN50021-155,TNOCA02.8043
HYDROX AP20 Coating Technical Specifications
|
List of items |
HYDROX AP20 |
Standard |
|
Typical coating composition |
Inc625-Cr2O3TiO2 |
|
|
Coating thickness |
Bottom ( Inc625) ≥150um |
|
|
|
Surface layer ( Cr2O3TiO2) ≥200um |
|
|
Bond strength |
> 40MPa |
ASTM-C633 |
|
Maximum temperature |
540˚C |
|
|
Porosity |
< 2% |
|
|
Macro hardness |
65 HRC |
|
|
Micro hardness |
> 1000HV200 |
NEN-EU 5 |
|
Surface Finish (Ra) |
0.15um-0.4um |
NEN-ISO 4287 |
|
Surface Finish (Rz) |
< 4.5um |
NEN-ISO 4287 |
|
Shock Value |
> 2J |
ASTM D2794-93 |
|
RPK Material contact area |
> 80%,Depth 1,0um |
NEN-ISO 4287 |
|
Anti-corrosion and salt spray test |
> 4000hrs |
DIN50021-155 |
|
ECP(Drying) |
< -350mV |
|
|
ECP(Semi-dry) |
< -350mV |
TNOCA02.8043 |
|
ECP(Wet) |
< -350mV |
|
To apple ceramic coating on the equipment surface can have many benefits . Such as high hardness, high temperature resistant, corrosion resistance, salt fog resistance. Effect is much better than common electroplating. It works well in ocean industry, food machinery, water conservancy and hydropower, aerospace and other industries.
Description:
Changzhou Hydraulic Complete Equipment Co., Ltd. is located in No. 1 Xinhui Road, Wujin National High-Tech Industrial Zone, Jiangsu Province. The company was established in 1990 and has more than 30 years of experience in producing complete sets of hydraulic hoist equipment, hydraulic cylinders and hydraulic control systems.The company covers an area of 93,333 m² where the building area is 68,000 m². The company has strong technical force and advanced technology. Five series of products, including [complete set of hydraulic hoist equipment], [applied industrial hydraulic cylinder and its control system], [servomotor], [thermal spraying], and [surface treatment], cover four major fields of water conservancy and hydropower, application industry, marine engineering ships, and national defense research. All kinds of products have reliable quality and won a good reputation
