Long Stroke Engine Hoist Hydraulic Cylinder Engine Hoist Replacement Cylinder

Long Stroke Engine Hoist Hydraulic Cylinder Engine Hoist Replacement Cylinder
Long Stroke Engine Hoist Hydraulic Cylinder Engine Hoist Replacement Cylinder

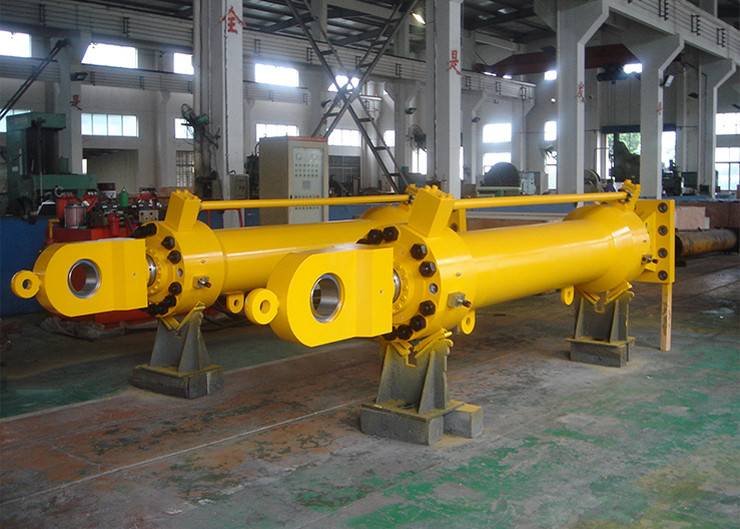

Large Image :  Long Stroke Engine Hoist Hydraulic Cylinder Engine Hoist Replacement Cylinder Get Best Price

Product Details:
Place of Origin: Changzhou, China
Brand Name: Magic Power
Model Number: QPPY-D
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Packaging Details: Standard Export Package
Delivery Time: 15~60 days depends on products type
Payment Terms: L/C,T/T
Supply Ability: 2400 Ton/Tons per Year
Detailed Product Description
Structure: Piston Cylinder Power: Hydraulic
Body Material: Steel Product Name: Engine Hoist Hydraulic Cylinder
Material: Carbon, Alloy, Stainless Steel Applications: Water Conservancy, Mechanical/marine/mining Equipment, Oil Industry, Vehicle
Stroke Length: 50 To 16,000mm Certification: DNV, ABS, Lloyds, BV, SGS, GL, And CCS
High Light:

engine crane hydraulic cylinder


hydraulic engine hoist cylinders

Long Stroke Engine Hoist Hydraulic Cylinder Engine Hoist Replacement Cylinder





Material :carbon, alloy, stainless steel

Working pressure:70 to 700 bars

The operating temperature is -25 ℃-50 ℃


Key Specifications/Special FeaturesKey Specifications/Special Features

Application industry

water conservancy, mechanical/marine/mining equipment, oil industry, vehicles, energy and port facilities

Stroke length

50 to 16,000mm

Tube inner diameter

80 to 1,050mm

Piston rod diameter

45 to 600mm



Working pressure

70 to 700 bars


LONGXI(china)or SKF

Seal type

common stand or in accordance with client's requirement (we usually use Parker from USA or MERKER from Germany)




DNV, ABS, Lloyds, BV, SGS, GL, and CCS


carbon, alloy, stainless steel


Detail manufacturing drawings to be submitted to buyer for approval before manufacture is commenced

QPPY-D type hydraulic hoist is also used for general flat gate to work for opening and closing. Working requirements are similar to QPPYII type, but its installation forms are different from QPPYII type. The remarkable difference is to reduce half space height in order to make more reasonable decorate. The acceptable working temperature should around from -35℃-50℃.


QPPY-D series hydraulic hoist : Flat gate hydraulic hoist, flat gate with hang upside down.


Hydraulic cylinder is the hydraulic energy into mechanical energy, reciprocating motion to do (or swing movement) of the hydraulic actuators. It is simple, reliable. Use it to achieve reciprocating movement can be removed from deceleration devices, and no transmission gap, smooth motion, so in a variety of machines are widely used in hydraulic systems. Hydraulic cylinder output force and the effective area of the piston is proportional to the pressure difference on both sides; hydraulic cylinder is basically a cylinder and cylinder head, piston and piston rod, seals, cushioning device and the exhaust composition.
Buffer device and the exhaust depending on the specific application of the occasion, other devices are indispensable.

Cylinder and cylinder of the advantages and disadvantages:
1. As the pneumatic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
3. The air viscosity is small, the resistance to less than the hydraulic oil;
4. But the air is much larger than the compression rate of hydraulic oil, so it's working smoothly and to respond to far backward in this regard.
Hydraulic cylinder hydraulic system is the most important components of implementation, it can convert mechanical energy of hydraulic and matched with a variety of transmission to complete all of the mechanical movement. Hydraulic cylinder has a simple structure, the output force, stable and reliable performance and easy maintenance, wide range of applications and so on.
