|Material:||Carbon Steel||Structure:||Piston Cylinder|
|Standard Or Nonstandard:||Standard||Power:||Hydraulic|
single acting cylinder hydraulic,
hydraulic single acting cylinder

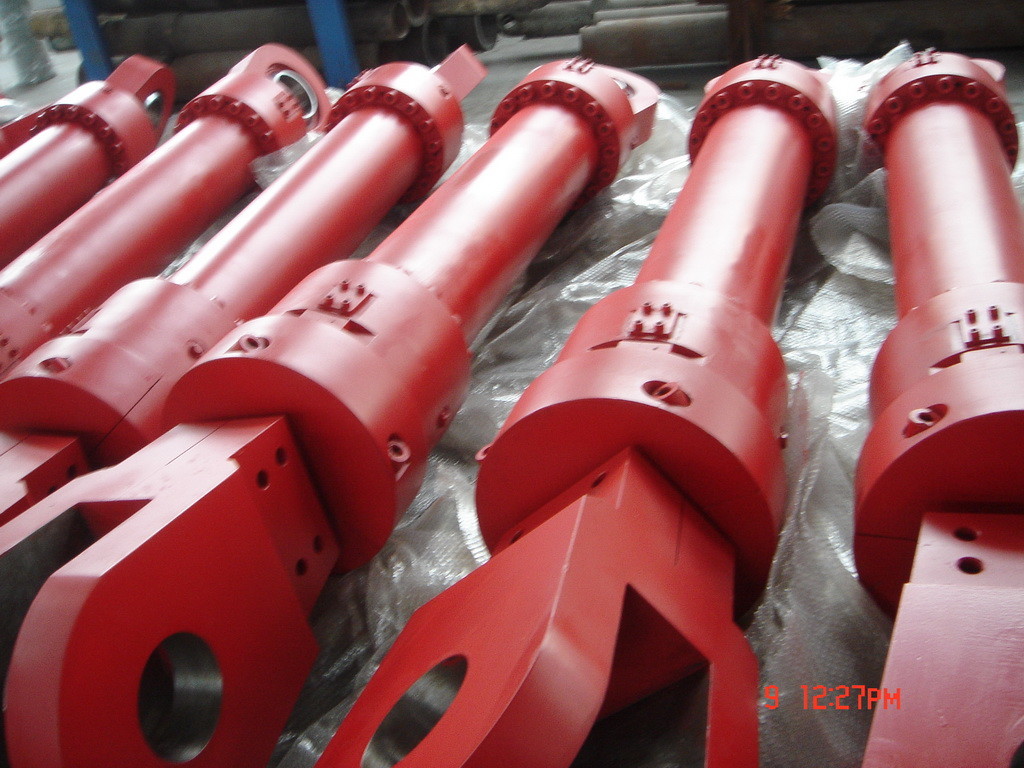

Red Single Acting Hydraulic Ram Lifting Hydraulic Cylinder For Furnace
Application industry:water conservancy, mechanical/marine/mining equipment, oil industry, vehicles, energy and port facilities
Material : carbon, alloy, stainless steel
Strong technological force and advanced technique and equipment
Key Specifications/Special FeaturesKey Specifications/Special Features
|Application industry||water conservancy, mechanical/marine/mining equipment, oil industry, vehicles, energy and port facilities|
|Stroke length||50 to 16,000mm|
|Tube inner diameter||80 to 1,050mm|
|Piston rod diameter||45 to 600mm|
|Working pressure||70 to 700 bars|
|Seal type||Common standard or in accordance with client's requirement (we usually use Parker from USA or MERKER from Germany)|
|Certification||DNV, ABS, Lloyds, BV, SGS, GL, and CCS|
|Material||Carbon, alloy, stainless steel|
|Detail manufacturing drawings to be submitted to buyer for approval before manufacture is commenced|
Hydraulic cylinder is the hydraulic energy into mechanical energy, reciprocating motion to do (or swing movement) of the hydraulic actuators. It is simple, reliable. Use it to achieve reciprocating movement can be removed from deceleration devices, and no transmission gap, smooth motion, so in a variety of machines are widely used in hydraulic systems. Hydraulic cylinder output force and the effective area of the piston is proportional to the pressure difference on both sides; hydraulic cylinder is basically a cylinder and cylinder head, piston and piston rod, seals, cushioning device and the exhaust composition.
Buffer device and the exhaust depending on the specific application of the occasion, other devices are indispensable.
Cylinder and cylinder of the advantages and disadvantages:
1. As the pneumatic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
3. The air viscosity is small, the resistance to less than the hydraulic oil;
4. But the air is much larger than the compression rate of hydraulic oil, so it's working smoothly and to respond to far backward in this regard.
Hydraulic cylinder hydraulic system is the most important components of implementation, it can convert mechanical energy of hydraulic and matched with a variety of transmission to complete all of the mechanical movement. Hydraulic cylinder has a simple structure, the output force, stable and reliable performance and easy maintenance, wide range of applications and so on.
